Fibre Glass Ladders
Non-conductive fibre glass step ladders for safe electrical work — EN 131 compliant, 150kg maximum load.
The ATOM AFG Series: twelve step ladder sizes from 4 to 15 steps for electrical installation, maintenance and inspection work — fibreglass stiles that do not conduct electricity, with full dimensions, weights and shipping pack sizes below.
The Ladder Range
A metal ladder is a hazard around live electrical work. The ATOM AFG Series step ladders are built with fibreglass stiles, which do not conduct electricity — the safe ladder for electrical installation and maintenance crews.
The range runs from the 4-step AFG-1004 at 1166mm high to the 15-step AFG-1015 at 4356mm, so there is a size for everything from switchroom work to plant-room and ceiling access. Every ladder in the series complies with the EN 131 ladder standard and is rated to a maximum load of 150kg.
Full dimensions, approximate weights and shipping pack sizes for all twelve sizes are listed below, together with the TGW-1 Tip and Glide Wheel accessory. Quote the item number with your enquiry for pricing and lead time.
- Non-conductive fibreglass stiles — safe for electrical installation, maintenance and inspection work.
- EN 131 compliant — all ATOM AFG Series ladders comply with the EN 131 standard; maximum load 150kg.
- PU-protected fibreglass — 3 additional layers of PU protect the fibre glass for added durability.
- Antistatic coating — tri-plate support design provides added strength and load capacity.
- Stainless steel pop-rivets — new-generation pop-rivets for improved strength.
- Tools net & rubber foot pads — a tools net for convenient tool access, and rubber threaded foot pads that add friction for stability.

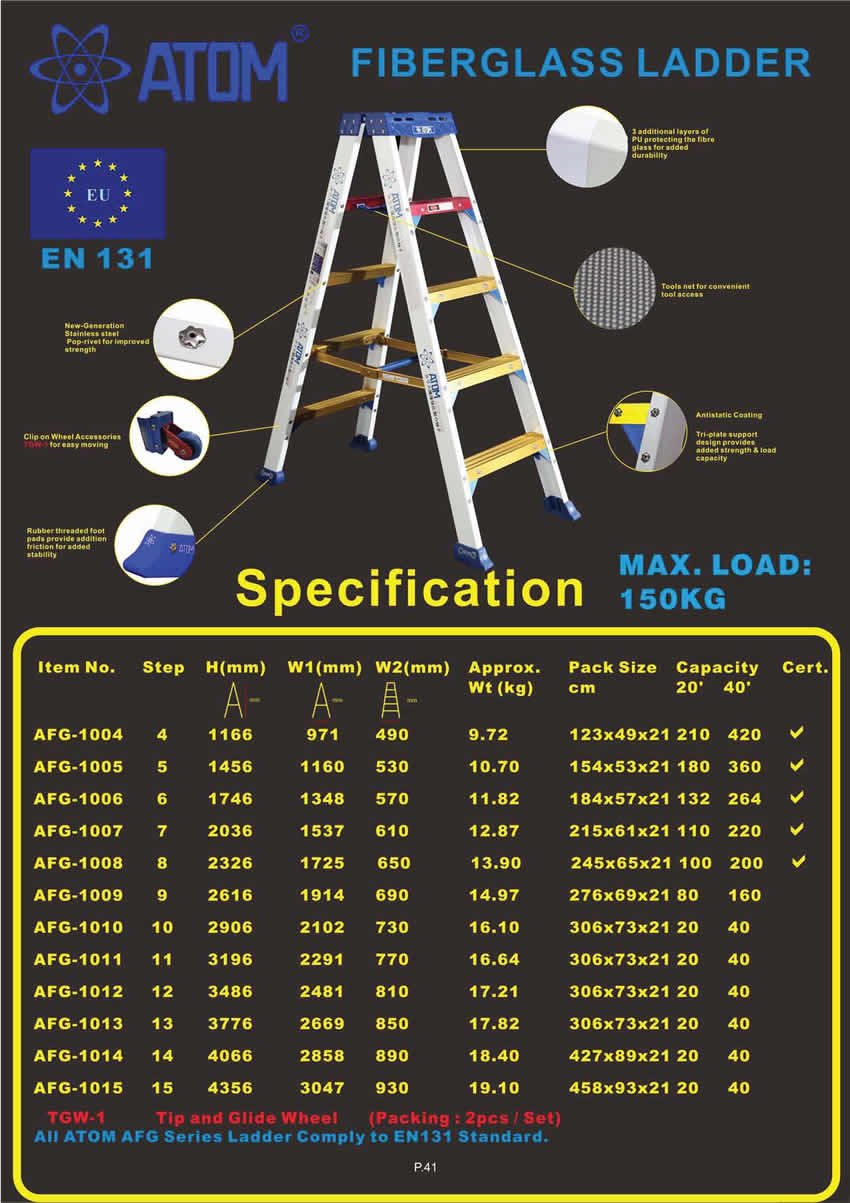

ATOM AFG Series Step Ladder — To EN 131
- Maximum load: 150kg across the series
- Dimensions: H = overall height, W1 = base spread (front to back, open), W2 = ladder width
| Item No. | Steps | H (mm) | W1 (mm) | W2 (mm) | Approx. Wt (kg) | Pack Size (cm) | Qty 20′ | Qty 40′ | Cert. |
|---|---|---|---|---|---|---|---|---|---|
| AFG-1004 | 4 | 1166 | 971 | 490 | 9.72 | 123×49×21 | 210 | 420 | ✓ |
| AFG-1005 | 5 | 1456 | 1160 | 530 | 10.70 | 154×53×21 | 180 | 360 | ✓ |
| AFG-1006 | 6 | 1746 | 1348 | 570 | 11.82 | 184×57×21 | 132 | 264 | ✓ |
| AFG-1007 | 7 | 2036 | 1537 | 610 | 12.87 | 215×61×21 | 110 | 220 | ✓ |
| AFG-1008 | 8 | 2326 | 1725 | 650 | 13.90 | 245×65×21 | 100 | 200 | ✓ |
| AFG-1009 | 9 | 2616 | 1914 | 690 | 14.97 | 276×69×21 | 80 | 160 | — |
| AFG-1010 | 10 | 2906 | 2102 | 730 | 16.10 | 306×73×21 | 20 | 40 | — |
| AFG-1011 | 11 | 3196 | 2291 | 770 | 16.64 | 306×73×21 | 20 | 40 | — |
| AFG-1012 | 12 | 3486 | 2481 | 810 | 17.21 | 306×73×21 | 20 | 40 | — |
| AFG-1013 | 13 | 3776 | 2669 | 850 | 17.82 | 306×73×21 | 20 | 40 | — |
| AFG-1014 | 14 | 4066 | 2858 | 890 | 18.40 | 427×89×21 | 20 | 40 | — |
| AFG-1015 | 15 | 4356 | 3047 | 930 | 19.10 | 458×93×21 | 20 | 40 | — |
All ATOM AFG Series ladders comply with the EN 131 standard. Certification marks are shown as listed on the specification sheet.
Tip & Glide Wheel — Accessory
Clip-on wheel accessory for easy moving of AFG Series ladders — clips onto the ladder so it can be rolled rather than carried between jobs.
| Item No. | Description | Packing |
|---|---|---|
| TGW-1 | Tip and Glide Wheel | 2 pcs / set |
Compliant To EN 131
Every ladder in the ATOM AFG Series complies with the European EN 131 standard for portable ladders and is rated to a maximum load of 150kg — with fibreglass construction that does not conduct electricity.
