Earthing Accessories

Bonds, clamps, earth plates, pits and earth points — tested to IEC 62561 and BS EN standards.

The complete accessory range for earthing installations: rod-to-tape and rod-to-cable clamps, U-bolt clamps, copper tape earth mats, concrete inspection pits, water sealing glands, soil improvement agents and earth points — every size listed with its part number.

Request a Quotation Download Catalogue
Unitech copper four-hole earth point with cover plate
Four-hole earth point with cover plate — copper, Unitech branded.
40+ Years
Of Manufacturing
40+
Countries Supplied
IEC · BS EN · UL
Standards Compliant

The Earthing Accessories Range

The fittings that complete the earthing system — connecting earth rods to conductors, bonding pipework and steelwork, providing inspection points, and improving the soil around the electrode.

Unitech’s earthing accessories cover every connection in a driven earthing installation: bonds and clamps tested to IEC 62561-1, copper tape earth mats, concrete inspection pits to IEC 62561-5, water sealing glands for through-wall rod sealing, soil improvement agents, and a full range of earth points for earthing structures and rebar.

Every size in the range is listed below with its part number — quote it with your enquiry for pricing and lead time. The couplings, driving studs and driving spikes used to install and extend earth rods are listed on the Earthing Rods page.

  • Bonds & clamps to IEC 62561-1 — rod-to-tape and rod-to-cable clamps, U-bolt rod clamps, pipe bonds and tower clamps.
  • Earth mats — copper tape lattice mats up to 1200 x 1200mm.
  • Inspection pits to IEC 62561-5 — concrete pits giving access for testing and maintenance.
  • Water sealing glands — stainless steel glands, pressure tested to 200 PSI, for sealing earth rods through walls and tank floors.
  • Custom sizes on request — non-standard sizes can be supplied across the range.

Bonds & Clamps

Bonds and clamps make the mechanical connections of the earthing system — rod to tape, rod to cable, cable to steelwork and pipework.

Unitech rod to tape clamp (Type A) — brass A-clamp with copper bolt
Rod to tape clamp (Type A) — brass A-clamp with copper bolt, for rod-to-tape connections.

Rod to Tape Clamp (Type A) — To IEC 62561-1

Rod DiaMax. ConductorPart No
12.5mm (1/2")26x12mmRTC10
16mm (5/8")26x12mmRTC10
19mm (3/4")26x10mmRTC10
16mm (5/8")40x12mmRTC30
16mm (5/8")51x8mmRTC40
19mm (3/4")51x12mmRTC50
20mm51x12mmRTC50
12.5mm (1/2")26x20mmRTC60
12.5mm (1/2")26x20mmRTC60
19mm (3/4")26x10mmRTC60
25mm (1")26x10mmRTC60
Unitech rod to cable clamps (Type B) — three brass U-clamps with threaded bolts
Rod to cable clamp (Type B) — RCC series, for rod-to-cable connections.

Rod to Cable Clamp (Type B) — To BS EN 50164-1

Rod DiaConductor RangePart No
9.5mm (3/8")6-35mmRCC9
12.5mm (1/2")16-50mmRCC12
16mm (5/8")16-70mmRCC16
19mm (3/4")16-95mmRCC20
25mm (1")70-120mmRCC25

Rod to Cable Lug Clamp

Unitech rod to cable lug clamp — brass clamp with threaded stud
Rod DiaRod TypePart No
9.5mm (3/8")CopperbondRCLC9
16mm (5/8")CopperbondRCLC16
19mm (3/4")CopperbondRCLC20
16mm (5/8")Solid CopperRCLC16S
19mm (3/4")Solid CopperRCLC20S

Tower Clamp

Unitech tower clamp — brass two-bolt cable clamp
Max Conductor SizePart No
50-70mm²TC50
70-95mm²TC70

Earth Boss

Unitech earth boss — round steel boss with M10 threaded centre hole, marked EB10SS
MaterialThreadPart No
Galvanized SteelM10EB10GS
Stainless Steel 316M10EB10SS
Unitech “U” bolt rod clamp UC301 — brass clamp body with copper U-bolt and nuts

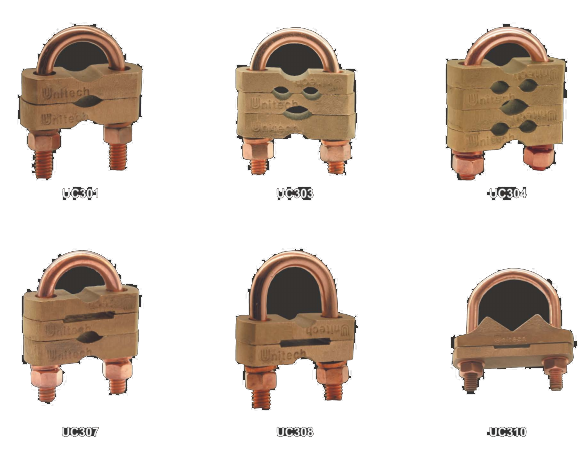

“U” bolt rod clamp — UC301, one of six patterns in the UC range.

“U” Bolt Rod Clamp — To IEC 62561-1

Rod / Pipe DiaNo. of Conductor(s)Conductor SizeNo. of Copper Tape(s)Tape SizePart No
16mm (5/8") - 19mm (3/4")150 - 95mm²--UC301
16mm (5/8") - 19mm (3/4")250 - 70mm²--UC302
16mm (5/8") - 19mm (3/4")350 - 70mm²--UC303
16mm (5/8") - 19mm (3/4")550 - 70mm²--UC304
16mm (5/8") - 19mm (3/4")350 - 120mm²--UC305
16mm (5/8") - 19mm (3/4")270 - 120mm²--UC306
16mm (5/8") - 19mm (3/4")170 - 120mm²-25mm x 3mmUC307
16mm (5/8") - 19mm (3/4")--1 or 225mm x 3mmUC308
30mm--1 or 250mm x 6mmUC309
40mm--125mm x 3mmUC310

Watermain Pipe Bond

Unitech watermain pipe bond — brass curved bond with bolt
Max. Tape WidthMaterialPart No
26mmCopperWMB26
26mmAluminiumWMB26A

Bar Bond

Unitech bar bond — brass bond plate with hex bolt, Unitech branded
Max. Tape WidthBolt SizeMaterialPart No
26mmM10CopperBB26
26mmM10AluminiumBB26A
31mmM10CopperBB31

Rain Water Pipe Bond

Unitech rain water pipe bond — brass angled bond with bolt, Unitech branded
Max. Tape WidthBolt SizeMaterialPart No
26mmM10CopperRWP26
26mmM10AluminiumRWP26A

Flexible Copper Braid Bond

For bonding gates, doors or fences.

Unitech flexible copper braid bond — flat woven copper braid with terminal lugs at each end
DimensionsHole SizeLengthPart No
25x3.5mm11mm200mmFES101
25x3.5mm11mm400mmFES102
Unitech tower earth clamp — brass cable clamp plate on a long threaded bolt
Tower earth clamp — TEC series, for bonding copper cable to steel bar.

Tower Earth Clamp

For bonding copper cable to steel bar.

DimensionsBolt SizeConductorPart No
16-70mm²M10CopperTEC16*
16-70mm²M10Tinned CopperTEC16T*
25-50mm²M10CopperTEC25*
25-50mm²M10Tinned CopperTEC25T*
70-120mm²M12CopperTEC70
70-120mm²M12Tinned CopperTEC70T
120-185mm²M12CopperTEC120
185-240mm²M12CopperTEC185

* Suitable for 8mm² solid circular conductor.

Earthing Receptacle

For boats and trucks.

Unitech earthing receptacle — copper eye terminal
Rod DiaPart No
16mm (5/8")EB58
19mm (3/4")EB34

Static Earth Receptacle

For aircraft, fuel trucks.

Unitech static earth receptacle — copper receptacle cup and stainless steel SER20 housing with Unitech branding
MaterialPart No
CopperSER10
Stainless Steel Grade 316SER20

Earth Plates & Pits

Copper tape earth mats for plate earthing, with concrete inspection pits for access to the earth electrode connection.

Earth Mat — Copper Tape

SizePart No
600 x 600 x 3mmEPL663
900 x 900 x 3mmEPL993
1200 x 1200 x 3mmEPL12123
600 x 600 x 6mmEPL666
900 x 900 x 6mmEPL996
1200 x 1200 x 6mmEPL12126
Unitech concrete inspection pit CIP10S with grid-pattern lid resting open
Concrete inspection pit — CIP10S, square pit with grid-pattern lid.

Concrete Inspection Pit — To IEC 62561-5

TypeMaterialPart No
SquareConcreteCIP10S

Water Sealing Gland

Stainless steel sealing glands that seal a copper earth rod where it passes through a wall, floor or tank plate, keeping water out of the structure.

Unitech double water sealing gland stainless steel plate with two gland screws
Double sealing gland — WPS - 3, stainless plate 300x300x3.

Water Sealing Gland

TypePart No
Top Water Sealing GlandWPS - 1A
Bottom Water Sealing GlandWPS - 1B
Double Sealing GlandWPS - 3
  • Pressure tested to 200 PSI — top gland assembly, with compression seal and high pressure hydraulic oil seal.
  • Stainless steel sealing gland and screw, with sealing “O” rings, on a stainless plate 300x300x3, continuously welded all round.

Soil Improvement Agents

Backfill compounds that lower the resistance of the earth electrode in poor or dry soils.

Unitech RES 1 resistivity enhancement soil 25kg sack
RES 1 — 25 kg sack, powder form.

Resistivity Enhancement Soil — RES 1

RES 1 is a conductive cementitious product used in the improvement of earthing electrodes. It lowers the overall resistance of the system by increasing the surface area, thus lowering resistance and increasing the overall capacitance. RES 1 is sold in powder form and can be used as is right out of the bag, or mixed with water into a slurry.

Sack WeightPart No
25 kgRES 1
Unitech bentonite BN001 25kg sack
Bentonite — BN001, 25 kg sack.

Bentonite

Bentonite expands when wet, absorbing as much as several times its dry mass in water while also improving the moisture retention in soil, thus making it a great compound to use as back-fill in electrical earthing applications.

Sack WeightPart No
25 kgBN001

Earth Points

Earth points provide the connection between the structure — rebar, mild steel bar or cable — and the earthing network, in bare or tinned copper, with or without cover plates.

Unitech four-hole earth point in copper — plain plates with four holes joined by a stem, no cover plate, two views
Four-hole earth point — EP4 series, plain plate without cover plate.

Four-Hole Earth Point — To IEC 62561-1

Hole SizeLengthMaterialTape SizePart No
M8 x 15mm55mmCopper25x3mmEP4
M8 x 15mm55mmTinned Copper25x3mmEP4T
M8 x 15mm60mmCopper25x6mmEP4-256
M8 x 15mm60mmTinned Copper25x6mmEP4T-256
M8 x 15mm60mmCopper38x6mmEP4-386
M8 x 15mm60mmTinned Copper38x6mmEP4T-386
M8 x 15mm60mmCopper50x6mmEP4-506
M8 x 15mm60mmTinned Copper50x6mmEP4T-506
Unitech four-hole earth point with cover plate — two copper cover-plate earth points
Four-hole earth point with cover plate — EPCP4 series.

Four-Hole Earth Point with Cover Plate — To IEC 62561-1

Hole SizeMaterialTape SizePart No
M8Copper25x3mmEPCP4
M8Tinned Copper25x3mmEPCP4T
M8Copper25x6mmEPCP4-256
M8Tinned Copper25x6mmEPCP4T-256
M8Copper38x6mmEPCP4-386
M8Tinned Copper38x6mmEPCP4T-386
M8Copper50x6mmEPCP4-506
M8Tinned Copper50x6mmEPCP4T-506

Two-Hole Earth Point

Unitech two-hole earth point — copper earth point, two views
Hole SizeMaterialPart No
M8CopperEP2
M8Tinned CopperEP2T
Illustration of common designs and installations — four catalogue diagrams showing earth points connected to reinforcement down conductors, with numbered callouts and the printed key

Earth Point Welded to 70mm² (G/Y) Cable — To IEC 62561-1

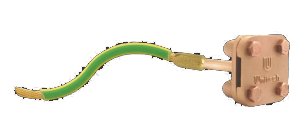

Unitech earth point welded to 70mm green/yellow cable — cover-plate earth point with green and yellow cable tail
DescriptionPart No
Four Hole Copper Earth Point Welded to 1 x 500mm Length 70mm² (Y/G) Cable StraightEP4-70P
Four Hole Tinned Copper Earth Point Welded to 1 x 500mm Length 70mm² (Y/G) Cable StraightEP4T-70P
Four Hole Copper Earth Point c/w Cover Plate Welded to 1 x 500mm Length 70mm² (Y/G) Cable StraightEPCP4-70P
Four Hole Tinned Copper Earth Point c/w Cover Plate Welded to 1 x 500mm Length 70mm² (Y/G) Cable StraightEPCP4T-70P
Unitech earth point welded to two 70mm green/yellow cables in a tee — earth point on post with two curved cable tails
Earth point welded to 2 x 70mm² cable (Tee) — EP4-70P2 series.

Earth Point Welded to 2 x 70mm² (G/Y) Cable — To IEC 62561-1

DescriptionPart No
Four Hole Copper Earth Point Welded to 2 x 500mm Length 70mm² (Y/G) Cable (Tee)EP4-70P2
Four Hole Tinned Copper Earth Point Welded to 2 x 500mm Length 70mm² (Y/G) Cable (Tee)EP4T-70P2
Four Hole Copper Earth Point c/w Cover Plate Welded to 2 x 500mm Length 70mm² (Y/G) Cable (Tee)EPCP4-70P2
Four Hole Tinned Copper Earth Point c/w Cover Plate Welded to 2 x 500mm Length 70mm² (Y/G) Cable (Tee)EPCP4T-70P2
Unitech copper earth points welded to horizontal mild steel rods — three T-joint earth points
Earth point welded to mild steel rod — EP4-H / EP4-S series.

Copper Earth Point Welded to Mild Steel Rod — To IEC 62561-1

Joint TypeSteel Rod DiaPart No (Bare)Part No (Tinned)
T Joint10mmEP4-10HEP4T-10H
T Joint16mmEP4-16HEP4T-16H
T Joint20mmEP4-20HEP4T-20H
T Joint25mmEP4-25HEP4T-25H
Straight Joint10mmEP4-10SEP4T-10S
Straight Joint16mmEP4-16SEP4T-16S
Straight Joint20mmEP4-20SEP4T-20S
Straight Joint25mmEP4-25SEP4T-25S

* Custom lengths and sizes of mild steel rod (cable) available on request.

Unitech copper earth points with cover plates welded to vertical mild steel rods — four straight-joint earth points
Earth point with cover plate welded to mild steel rod — EPCP4-H / EPCP4-S series.

Copper Earth Point with Cover Plate Welded to Mild Steel Rod — To IEC 62561-1

Joint TypeSteel Rod DiaPart No (Bare)Part No (Tinned)
T Joint10mmEPCP4-10HEPCP4T-10H
T Joint16mmEPCP4-16HEPCP4T-16H
T Joint20mmEPCP4-20HEPCP4T-20H
T Joint25mmEPCP4-25HEPCP4T-25H
Straight Joint10mmEPCP4-10SEPCP4T-10S
Straight Joint16mmEPCP4-16SEPCP4T-16S
Straight Joint20mmEPCP4-20SEPCP4T-20S
Straight Joint25mmEPCP4-25SEPCP4T-25S

* Custom lengths and sizes of mild steel rod (cable) available on request.

More From The Product Range

Earthing accessories complete the system — browse the rest of the Unitech earthing and lightning protection range.
